Phase Change Thermal Interface

Phase Change Thermal Interface

Phase change thermal interface materials are engineered for applications that require high thermal performance and precision under temperature cycles. These materials remain solid at room temperature for easy handling and placement, but once the system heats up (typically between 45°C and 55°C), they soften and flow to fill surface micro-gaps — dramatically improving thermal contact and minimizing resistance.

This behavior makes them an excellent alternative to grease or pads in environments where thermal control, cleanliness, and repeatability are essential.

Key Features & Benefits:

• 🌡 Temperature-Activated Performance
  At room temperature: solid and easy to apply.
  At operating temperature: transitions to a gel-like state, filling micro-gaps for optimized thermal contact.
• ⚡ Low Thermal Resistance
  Delivers superior performance by eliminating microscopic air pockets between components and heatsinks.

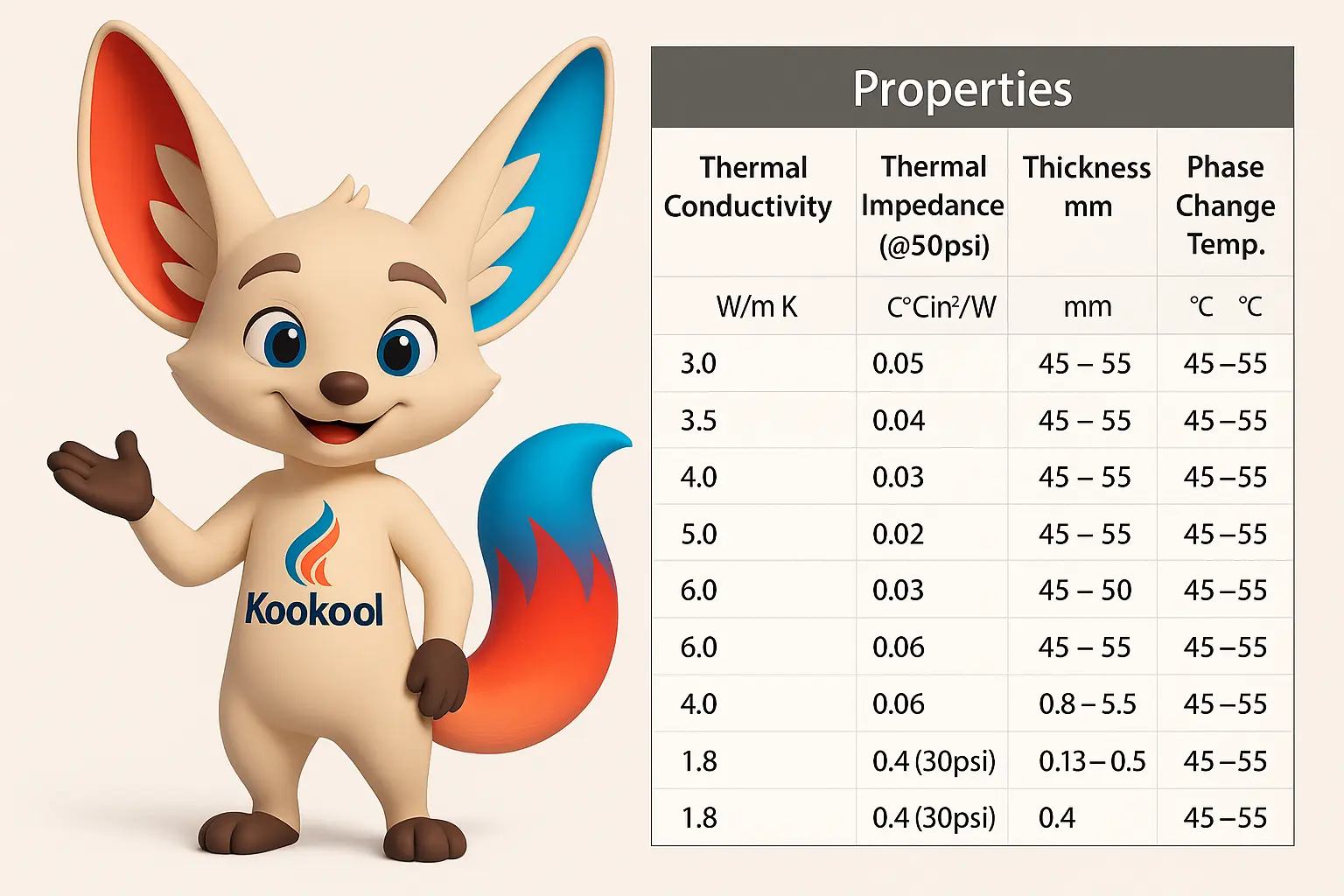

  Typical thermal conductivity: 1.8 to 6.0 W/m·K.
• 🧼 Clean and Controlled Application
  Unlike thermal grease, it won’t pump out, migrate, or make a mess — ensures consistent performance across cycles.
• 🔁 Reflow Stability
  Withstands thermal cycling without degradation or dripping, making it suitable for devices that undergo regular heating and cooling.
• 🧲 Naturally Tacky for Easy Placement
  Stays in place during assembly and reflow processes without requiring extra adhesive.
• 🌿 Environmentally Friendly
  Compliant with RoHS, REACH, and Halogen-Free standards.

Common Applications:

• High-Performance CPUs & GPUs
• Power Modules & Voltage Regulators
• Memory Modules & Chipsets in Data Centers
• Telecom Base Stations & Network Equipment
• Automotive Control Units & Radar Modules

Phase change materials are ideal when you need high thermal performance with precise application, especially for flat, high-power components where traditional pads can’t fully eliminate thermal resistance. Their self-activating behavior makes them excellent for automated manufacturing and long-life devices.

Order your Phase Change Thermal Pads
